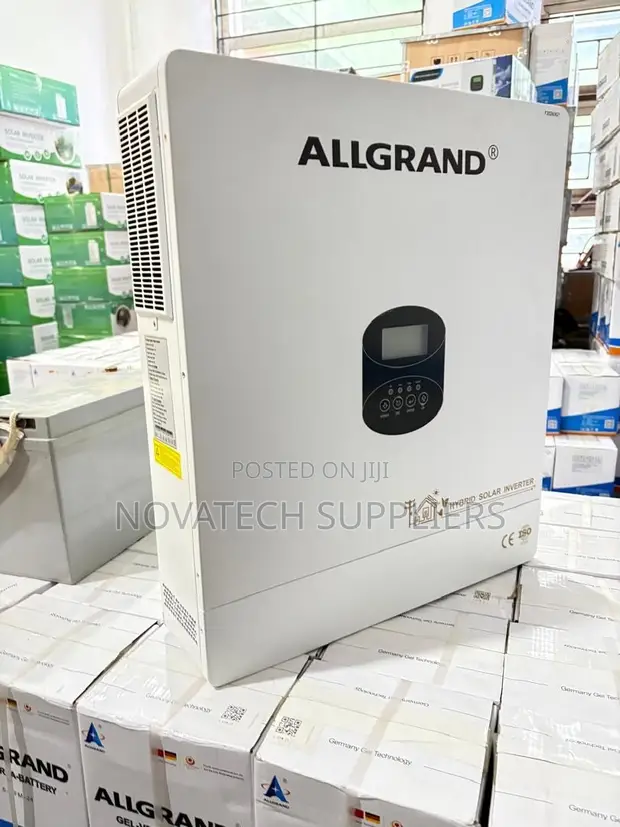

ALLGRAND HFP-S11248 11kW 48V Solar Hybrid Inverter

ALLGRAND HFP-S11248 11kW 48V Solar Hybrid Inverter - 1
1 / 2

Price Analysis Fair Price

Based on 257 similar listings

Details

Type
Inverters
Brand
Solar
Condition
Brand New
Frequency
50/60 Hz Auto
Peak Power
12000
Inverter Type
Hybrid Inverter
Rated Power Output
11000

ALLGRAND HFP-S11248 11kW 48V Solar Hybrid Inverter Highlights

  • Hybrid Inverter Functionality: Hybrid inverters combine the functions of a solar inverter and a battery inverter. They can manage power from solar panels, the grid, and battery storage, offering flexibility in energy management.
  • High Rated Power Output: With a rated power output of 11000W, this inverter is suitable for powering significant household loads or small commercial applications. It can handle the energy demands of multiple appliances simultaneously.
  • Peak Power Capability: The peak power rating of 12000W indicates the inverter's ability to handle short bursts of high demand, such as motor start-ups for appliances like refrigerators or air conditioners.
  • 48V Battery System Compatibility: Designed to work with 48V battery systems, this inverter is compatible with a wide range of common deep-cycle batteries used in solar and backup power applications.
  • Automatic Frequency Adjustment: The auto 50/60 Hz frequency setting ensures compatibility with electrical grids worldwide. This feature allows the inverter to adapt to different regional power standards without manual intervention.

Description

• ALLGRAND HFP-S11248 is an 11kW, 48VDC solar hybrid inverter. • Features 11kW rated power and supports up to 238.4A DC battery input. • Offers a maximum 180A charging current (120A AC, 180A PV). • Equipped with 2 MPPT trackers, each supporting 6000W for a total of 12,000W PV input. • Maximum PV open-circuit voltage is 500VDC; MPPT range is 80-450VDC. • Single-phase 230VAC, 50/60Hz operation with 77.2A max input and 44.9A output. • IP20 rated, Class I protection. • Comes with a 3-year warranty.
