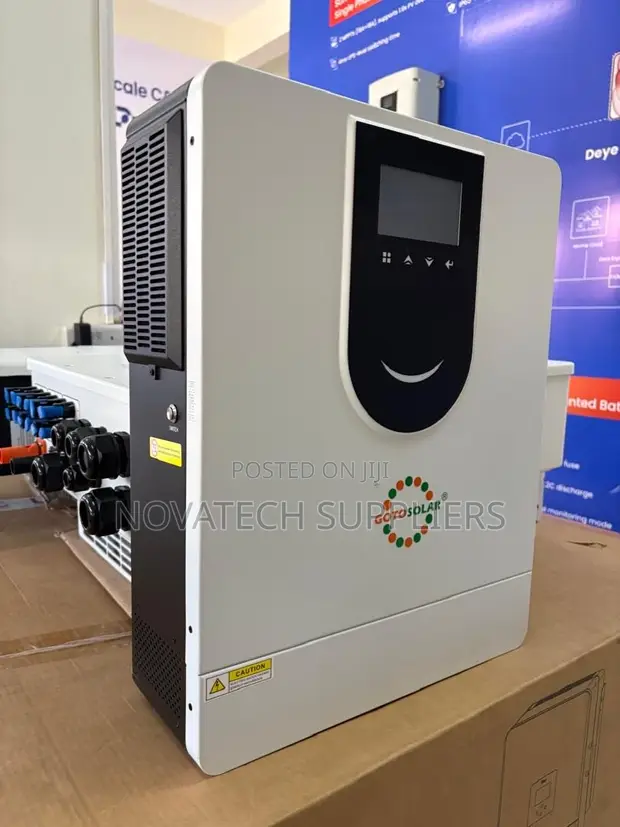

Gotosolar 10.2kW 48V Hybrid Solar Inverter 10.8kW PV

Gotosolar 10.2kW 48V Hybrid Solar Inverter 10.8kW PV - 1
1 / 2

Price Analysis Fair Price

Based on 470 similar listings

Details

Type
Power Inverters
Brand
Solar
Power
10.2
USB Port
Yes
Condition
Brand New
Inverter Type
Hybrid Inverter
Apparent Power
10.2
Inverter Voltage
48

Gotosolar 10.2kW 48V Hybrid Solar Inverter 10.8kW PV Highlights

  • Hybrid Inverter Functionality: Hybrid inverters combine the functions of a solar inverter and a battery inverter. They can manage power from solar panels, the grid, and battery storage, offering flexibility in energy management.
  • High Power Output: With a substantial power output, this inverter is designed to handle significant energy demands for residential or commercial applications. It efficiently converts DC power from solar panels to AC power for your appliances.
  • 48V System Compatibility: This inverter operates on a 48V battery system, a common standard for larger off-grid and hybrid solar installations. Ensure your battery bank is configured to this voltage for optimal performance.
  • Integrated USB Port: The inclusion of a USB port can be useful for firmware updates or powering small USB devices directly from the inverter. Check the specific capabilities of the USB port for its intended use.
  • Scalable Solar Solutions: Hybrid inverters are often part of a larger solar energy system. They can be integrated with solar panels and battery storage to create a robust and reliable power source, reducing reliance on the grid.

Description

• Gotosolar SY2-10.2KW-48V hybrid solar inverter charger with 10,200W full-load output. • Designed for 48VDC battery systems, supporting up to 10,800W maximum solar input across 2 PV channels (5,400W + 5,400W). • PV input voltage range: 90–450VDC, with a 360V nominal operating voltage and 500V maximum PV voltage. • Maximum solar charging current is 160A, with a full-load MPPT range of 360–450V. • Grid output supports 230VAC, 50/60Hz, with 44.3A nominal output current and up to 98% conversion efficiency. • AC input supports 230VAC, 50A maximum input and 140A AC charging. • Features a 3-year warranty.
