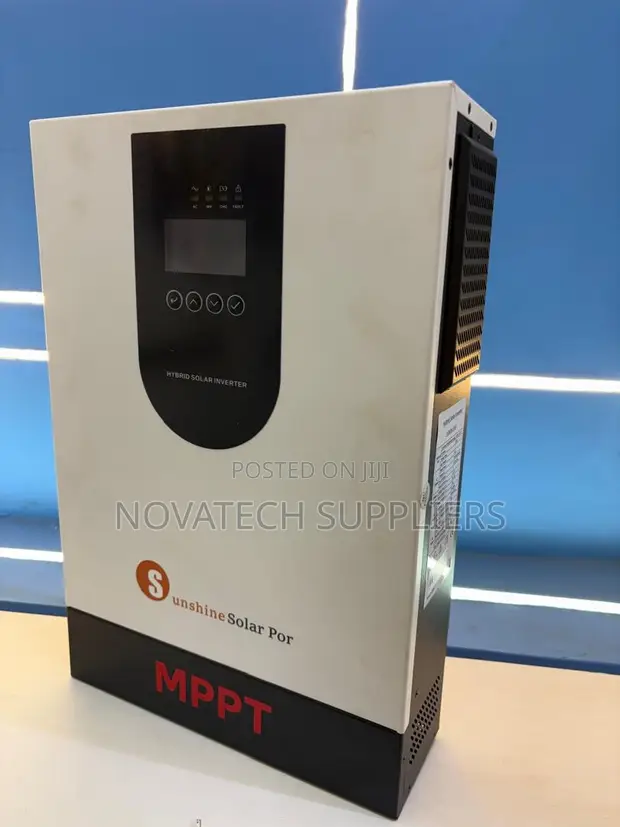

Sunshine 3.6kW 24V Hybrid Solar Inverter MPPT

Sunshine 3.6kW 24V Hybrid Solar Inverter MPPT - 1
1 / 2

Price Analysis Good Price

Based on 470 similar listings

Details

Type
Power Inverters
Brand
Solar
Power
3.6
USB Port
Yes
Condition
Brand New
Inverter Type
Hybrid Inverter
Apparent Power
3.6
Inverter Voltage
24

Sunshine 3.6kW 24V Hybrid Solar Inverter MPPT Highlights

  • Hybrid Inverter Functionality: Hybrid inverters can manage power from multiple sources, including solar panels, batteries, and the grid. This allows for flexible energy management, backup power, and potential cost savings.
  • MPPT Charge Controller: Maximum Power Point Tracking (MPPT) is a technology used in solar charge controllers to optimize the power output from solar panels. It ensures that the panels operate at their most efficient voltage and current levels.
  • 24V System Voltage: This inverter is designed for 24-volt battery systems. It's important to match the inverter's voltage to the battery bank's voltage for optimal performance and safety.
  • 3.6kW Continuous Power Output: The inverter can continuously supply up to 3.6 kilowatts of power to connected loads. This rating indicates the sustained power delivery capability for running appliances and equipment.
  • 5000W Peak Power Capability: The 5000W rating typically refers to the surge or peak power the inverter can deliver for short durations. This is crucial for starting appliances with high inrush currents, like motors.
  • Integrated USB Port: The inclusion of a USB port often allows for direct connection of devices for charging or data transfer. This adds convenience for powering small electronics.

Description

• Sunshine 3.6kW 24V Hybrid Solar Inverter with MPPT technology. • Rated output of 3600VA/3600W, 230V ±5% AC output, 15.7A rated output current. • Operates with a 24VDC battery system (20–30V range). • PV input supports up to 5000W, 18A max PV current, 500VDC max Voc, and 40–450VDC MPPT range. • Maximum DC charging current is 100A; AC input accepts 90–280VAC. • Operating temperature: -10°C to 60°C. IP21 protection, Class I safety. • Brand new condition with a 3-year warranty. • Suitable for home, office, and solar backup applications.
